U7 Pro Max
Unleash the Power of Wi-Fi 7
The Ubiquiti U7 Pro Max access point redefines wireless connectivity for demanding environments. It leverages cutting-edge Wi-Fi 7 technology to deliver blazing-fast speeds, ultra-low latency, and exceptional capacity for handling a multitude of devices simultaneously. This innovative access point boasts support for the 6 GHz band, offering significant advantages over traditional Wi-Fi solutions.
The U7 Pro Max boasts impressive technical specifications that contribute to its outstanding performance. It features 8 spatial streams (utilizing MU-MIMO and OFDMA technologies) for efficient data transmission. This ensures exceptional performance even in high-density environments with numerous connected devices. Additionally, the access point features real-time spectral analysis, a groundbreaking feature that continuously monitors the wireless spectrum for optimal channel selection. This intelligent feature translates to a more stable and reliable connection by automatically avoiding congested channels.
Extensive Coverage
The Ubiquiti U7 Pro Max is designed to provide extensive wireless coverage, ideal for homes, offices, and even large open spaces. It offers a coverage area of up to 160 square meters, ensuring a seamless Wi-Fi experience across your entire space. Furthermore, the access point can support over 500 connected devices, making it suitable for environments with a high number of users and devices. The U7 Pro Max seamlessly integrates with other Ubiquiti UniFi access points to create a scalable, self-healing mesh network. This intelligent network automatically adjusts to optimize performance and coverage based on the environment.
Versatile Deployment

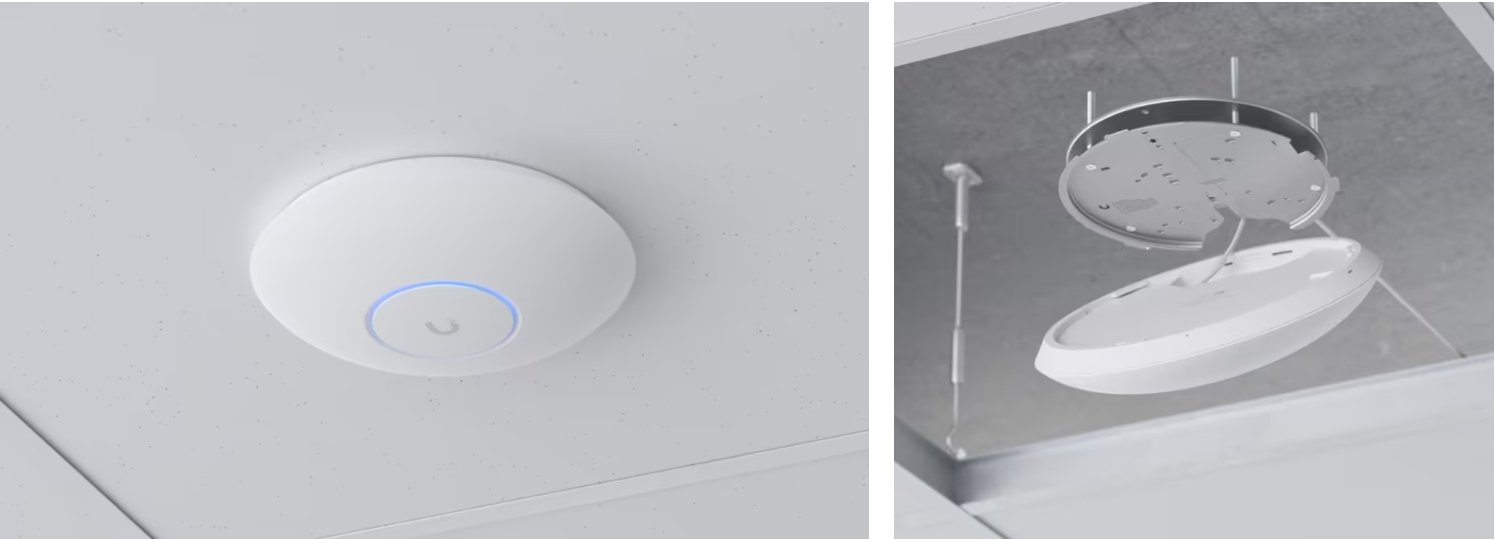

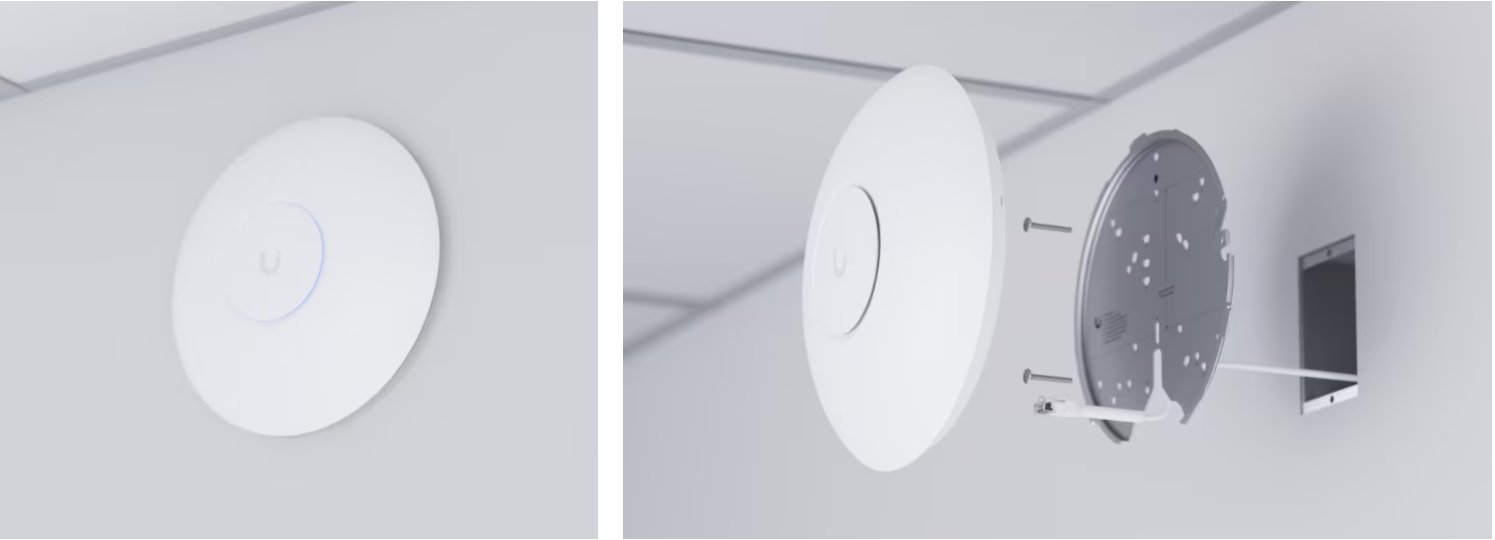

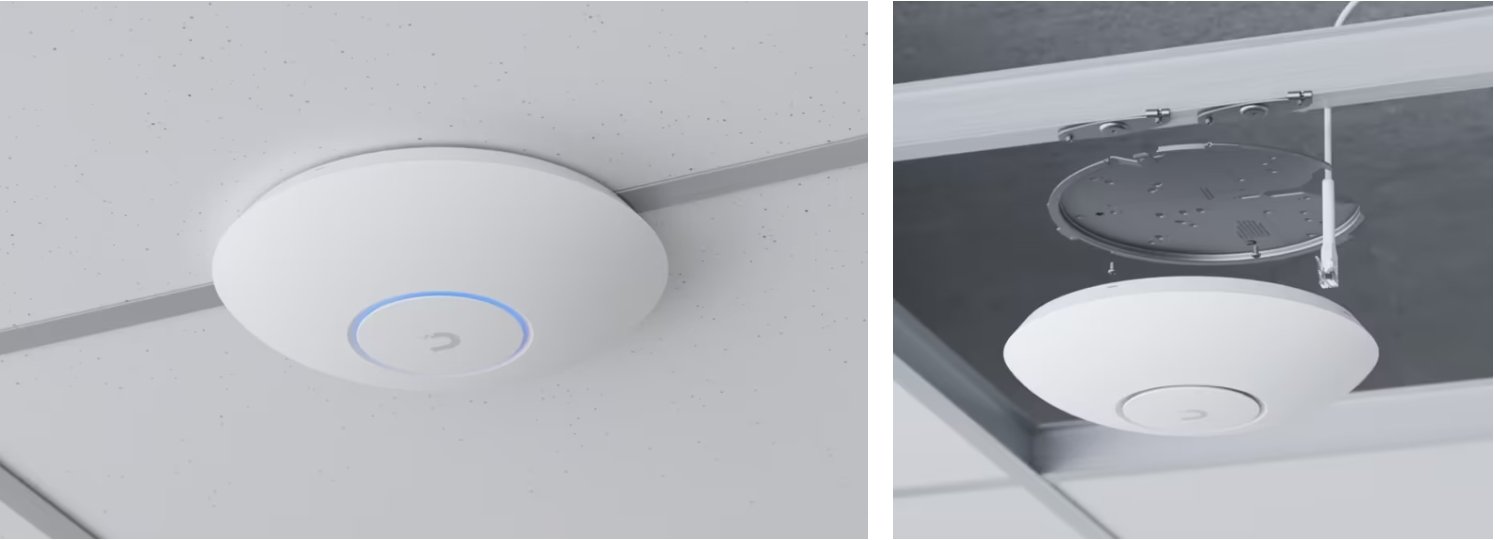

The Ubiquiti U7 Pro Max offers flexible mounting options for versatile deployment. Mounting hardware for both wall and ceiling installations is included, allowing you to tailor the placement to your specific needs. Powered using PoE+ (Power over Ethernet), the access point eliminates the need for separate power supplies, simplifying installation and minimizing cable clutter. Additionally, the U7 Pro Max features a 2.5 GbE uplink port, providing a high-speed connection to your network backbone for maximized performance.
Streamlined Management
Ubiquiti U7 Pro Max prioritizes user convenience. It integrates seamlessly with the UniFi Network Controller software, providing a centralized platform for network configuration, monitoring, and advanced features. With the intuitive UniFi Network Controller software (version 8.2.93 or later required), you can easily manage and configure your entire network from a single interface. You can easily access real-time network insights, make adjustments to network settings, and manage guest access all from a user-friendly web interface or mobile app.
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
*Requires UniFi Network 8.2.93 and later.
Technical Specifications
| Mechanical | ||
|---|---|---|
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") | |
| Weight | 680 g (1.5 lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 4457V DC | |
| Max. power consumption | 25W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 29 dBm 23 dBm | |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) | |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 8.6 Gbps (BW240) 5.7 Gbps (BW320) | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 6 dBi 5.9 dBi | |
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 500+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | |
| 802.11be (WiFi 7) 5 GHz 6 GHz | 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.2.93 and later |
Technical Specifications Reference from : https://techspecs.ui.com
