U7 In-Wall

 Pre order 7-10 days

Exceptional Wireless Performance

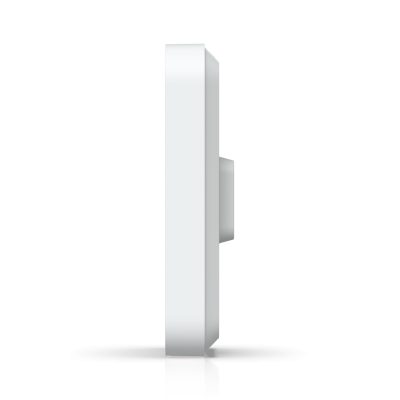

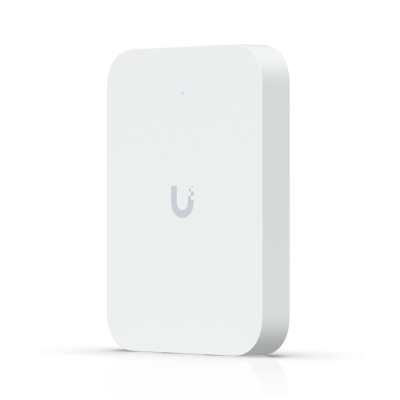

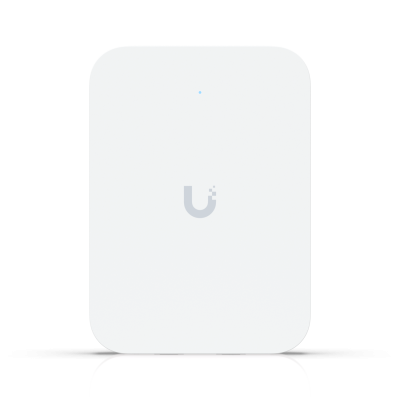

The Ubiquiti UniFi U7 In-Wall (U7-IW) is a cutting-edge WiFi 7 access point designed for seamless in-wall installation, offering ultra-fast wireless connectivity and robust networking features. Equipped with 4 spatial streams, the U7-IW provides exceptional wireless performance with speeds of up to 4.3 Gbps in the 5 GHz band and 688 Mbps in the 2.4 GHz band. The 2x2 MU-MIMO and OFDMA technologies ensure efficient data transmission, reducing latency and enhancing network capacity. Internal antennas (8 dBi for 5 GHz, 4 dBi for 2.4 GHz) maximize signal strength, providing reliable coverage of up to 115 m².

The device features internal antennas with gains of 8 dBi for 5 GHz and 4 dBi for 2.4 GHz frequencies, ensuring robust signal strength and reliable connectivity throughout the coverage area. Measuring 137 x 98.7 x 30.2 mm and weighing 400 grams, the U7-IW is tailored for indoor environments, blending effortlessly into any setting. With wireless meshing capabilities, fast roaming (802.11r), and band steering, the U7-IW optimizes connectivity in high-density environments. Its sleek design and robust performance make it an ideal solution for both residential and commercial applications.

Advanced Features and Seamless Integration

The U7-IW supports captive hotspot portals, VLAN-based traffic segmentation, and advanced QoS, making it an ideal solution for enterprise and hospitality environments. Managed via the UniFi Network application (version 9.0.114 and later), it allows for centralized configuration, monitoring, and optimization of your entire network. Its seamless compatibility with UniFi switches, gateways, and controllers ensures a scalable and future-proof networking solution. Whether expanding existing coverage or upgrading to WiFi 7, the U7-IW delivers unmatched performance and flexibility.

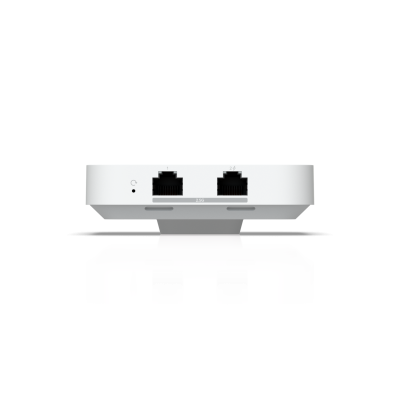

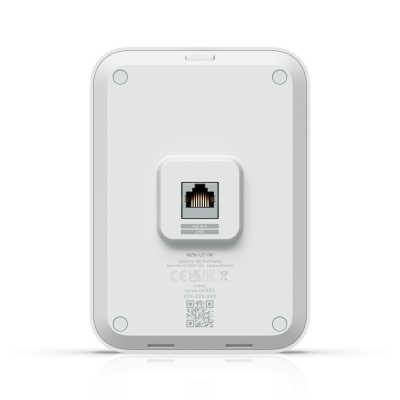

The U7-IW features a 2.5 GbE uplink port for high-speed data transmission, ensuring maximum throughput for demanding applications. Additionally, it includes two front-facing 2.5 GbE LAN ports, with one supporting PoE output when powered by PoE+. This allows seamless integration with other PoE-enabled devices, reducing the need for extra power adapters. The device is powered via PoE or PoE+ (48V, 0.5A), with PoE+ required for single-port PoE output. Its energy-efficient design ensures maximum performance while keeping power consumption as low as 13W (excluding PoE output).
